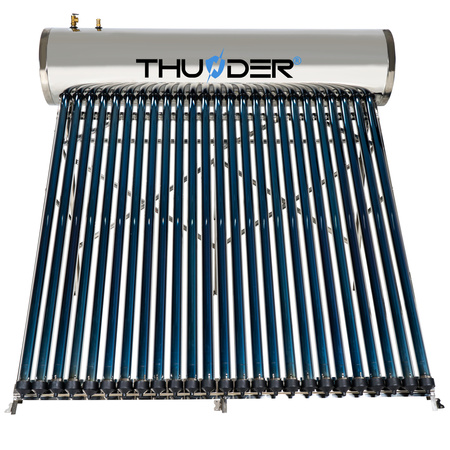

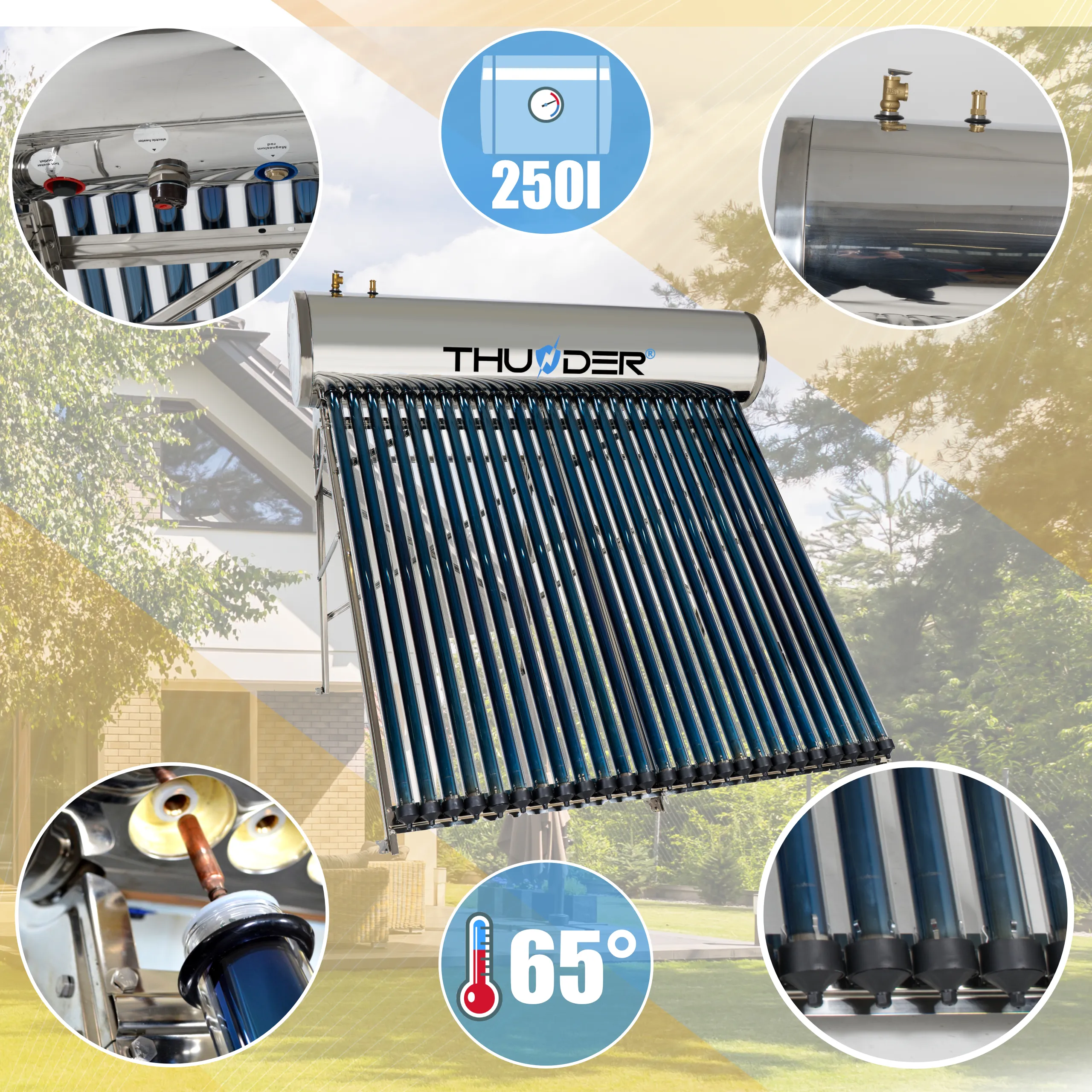

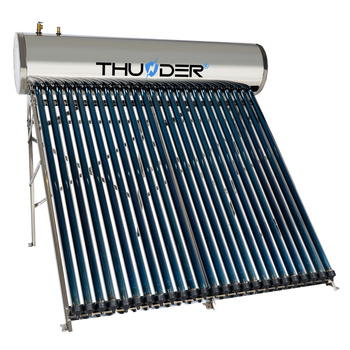

Technical Specifications

• Water Tank Capacity: 250 liters
• Inner Tank Material: SUS-304-2B stainless steel
• Outer Tank Material: SUS-201BA stainless steel
• Number of Vacuum Tubes: 25 units
• Vacuum Tube Dimensions: 58 mm / 1800 mm
• Vacuum Tube Material: Borosilicate glass

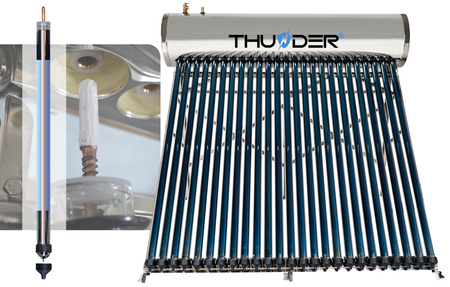

• Heat-Pipe Technology: YES
• Heat Exchanger: Copper
• Frame: SUS 201 stainless steel
• Thermal Insulation: 50mm polyurethane foam
• Performance: Water temperature increase up to 60°C
• Hail Resistance: Φ25 mm

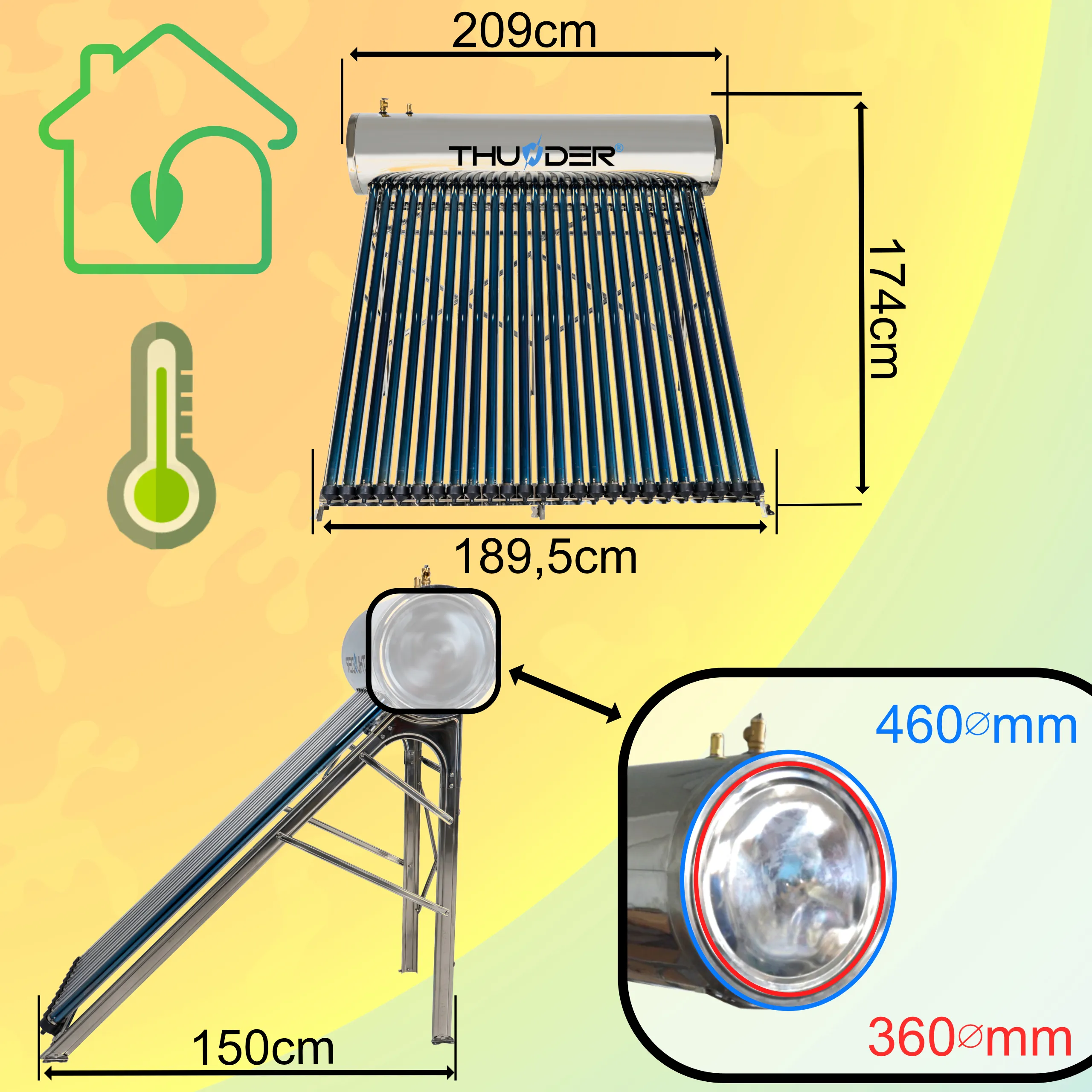

Dimensions

• Water Tank Length: 209 cm
• Inner Tank Diameter: 360 mm
• Outer Tank Diameter: 460 mm
• Width: 189.5 cm
• Height: 174 cm
• Depth: 150 cm

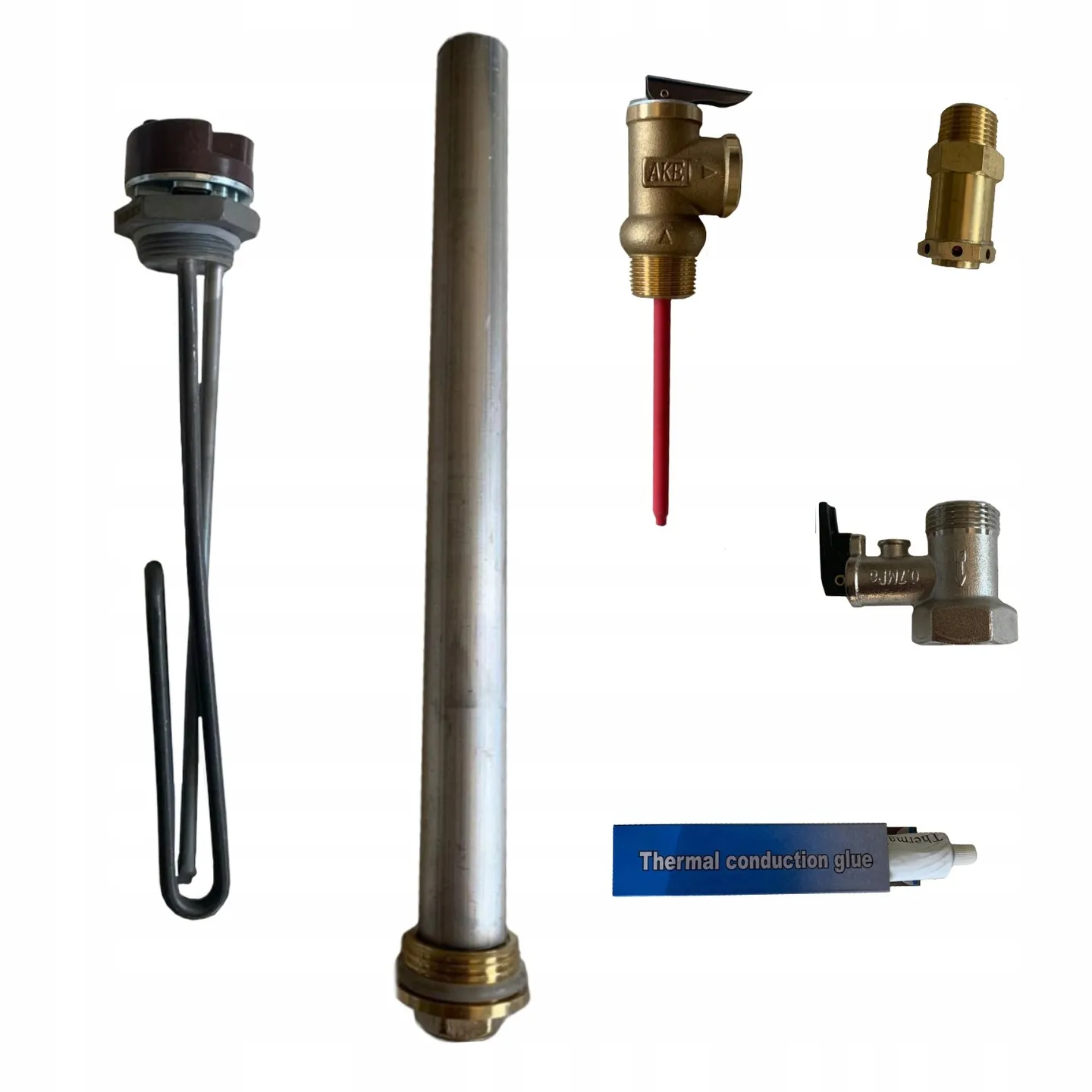

Kit Contents:

1. 250L water tank made of stainless steel, insulated with polyurethane foam

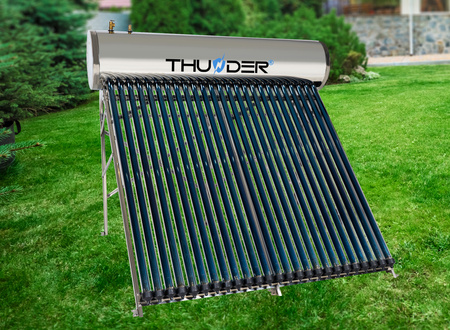

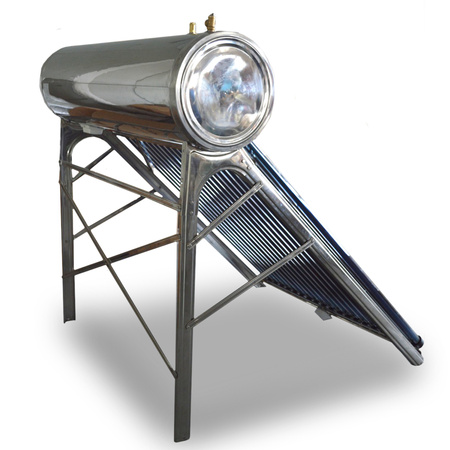

2. Stainless steel frame – mountable on ground or roof
3. 25 borosilicate glass vacuum tubes

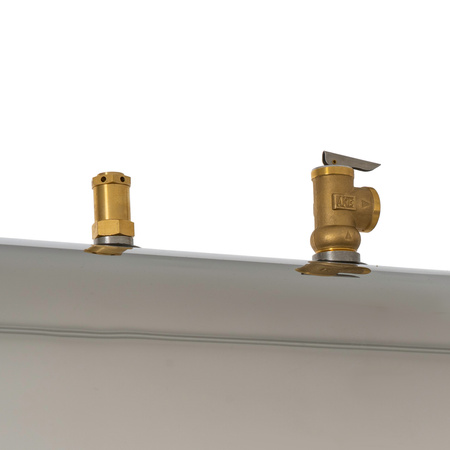

4. T/P valve
5. Safety valve
6. Anti-vacuum valve

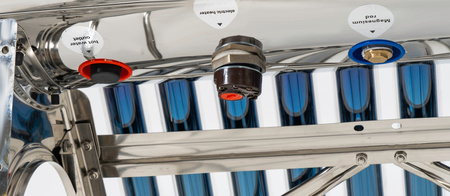

7. Magnesium anode – built-in
8. Thermal conductive paste
9. 3000W auxiliary electric heater – built-in
10. Mounting screws and nuts
11. Multilingual user manual

Reduce Heating Costs – Take Advantage of Thermomodernization Subsidy with THUNDER Pressurized Collectors!

The thermomodernization subsidy is a financial support program for homeowners or co-owners who modernize their properties by installing energy-efficient heating systems or thermal insulation.

We offer kits in other capacities – check our other listings.

Install a Solar Collector and Enjoy Free Solar Energy!

Dreaming of constant access to hot water without high costs? A pressurized solar collector is the solution you’ve been waiting for! It’s a functional and cost-effective choice. Don’t wait – invest in comfort and savings today! This solution pays for itself in 2-3 years and helps protect the environment and secure our planet’s future. Our company provides high-quality, durable, and easy-to-use solar collectors.

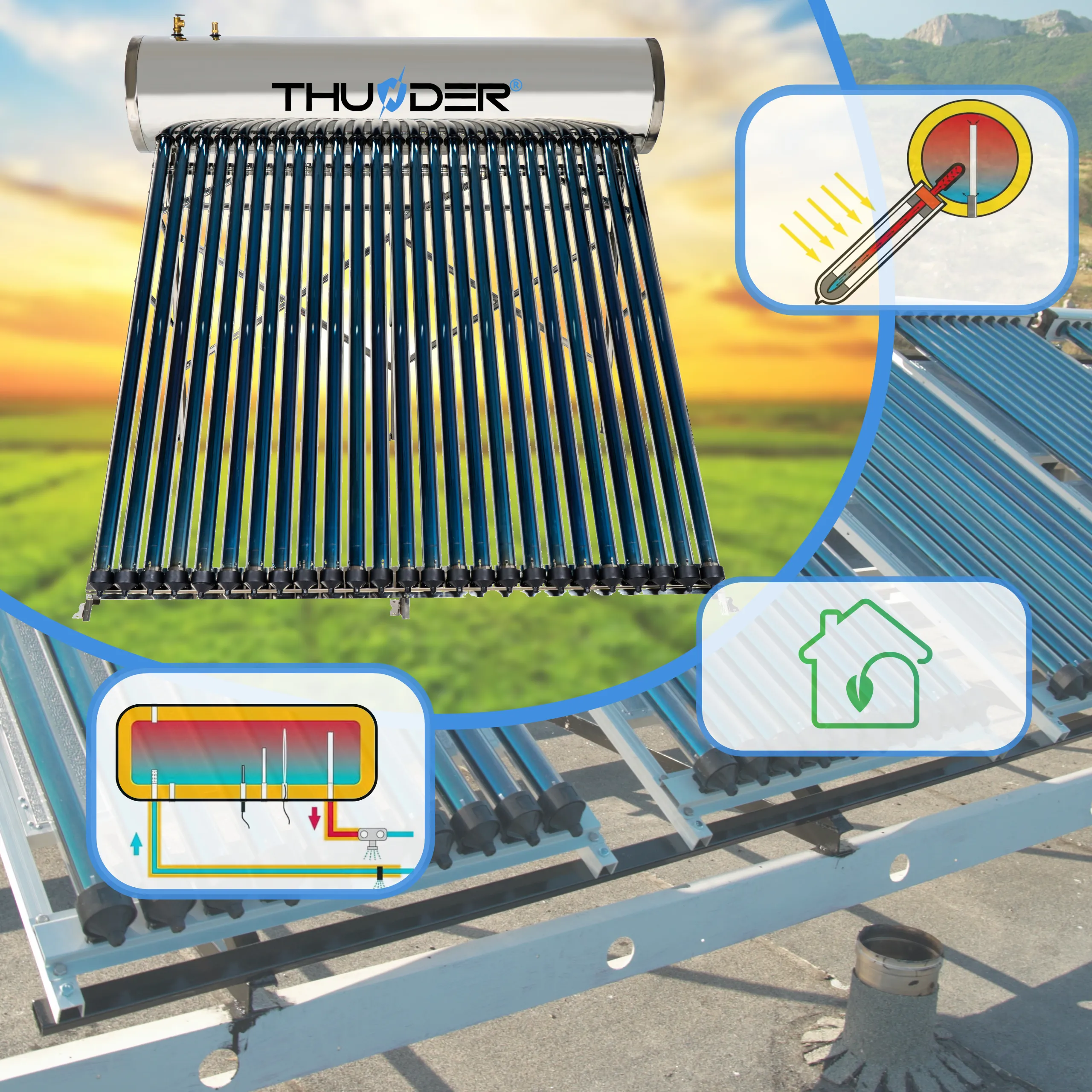

Solar Energy at Home – How Does a Solar Collector Work?

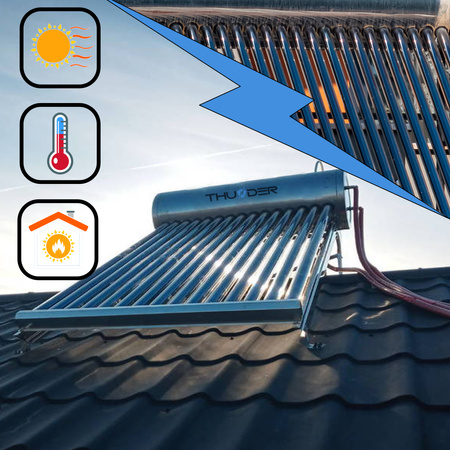

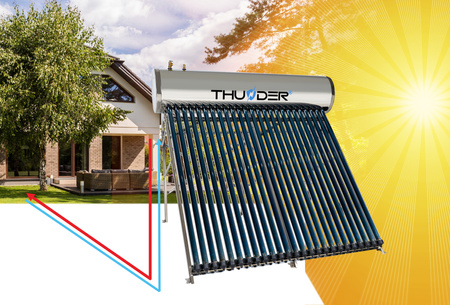

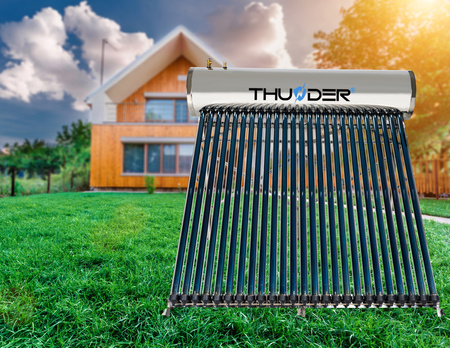

The THUNDER solar collector uses solar energy to heat water, helping you cut electricity bills and reduce harmful emissions. It consists of vacuum tubes installed on the roof or ground. Sunlight is absorbed by special elements, converted to heat, and transferred to the water tank. Even if one tube is damaged, the system continues to operate. Heated water can be used for sanitary or heating purposes.

Benefits of Solar Collectors:

1. Eco-Friendly: Uses renewable solar energy, emitting no greenhouse gases.
2. Cost Savings: Significantly reduces electricity/gas bills long-term.
3. Easy Installation: Can be mounted on roofs or ground.
4. Durability: Long lifespan with minimal maintenance costs.
5. High Efficiency: Effectively harnesses solar energy.
6. Low Maintenance: No special servicing required.

Save and Profit with a Solar Collector – A Future-Proof Investment!

The THUNDER solar collector is a high-quality device designed for your comfort and efficiency. Built with durable materials, it ensures longevity and reliability. Thanks to modern technology, it delivers high performance and efficiency, saving energy costs and promoting sustainability. Available in various sizes to meet individual needs.

Make the sun your best ally – invest in THUNDER solar collectors and enjoy hot water year-round!
